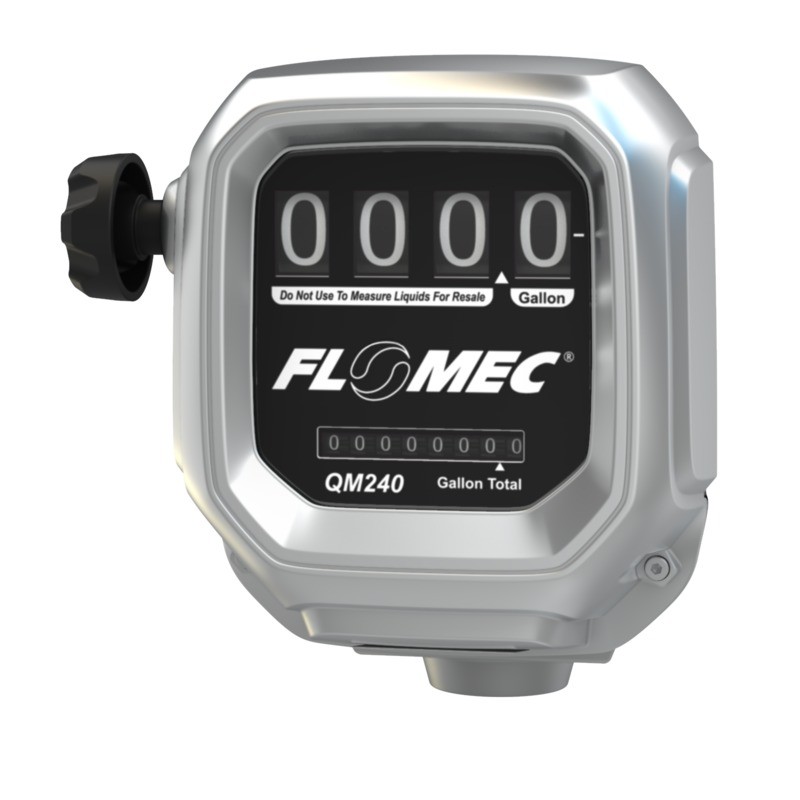

GPI-QM240 mechanical fuel meter for 115 volt fuel pumps
GPI 139121-06, QM240N10, 2 – 40 GPM (8 – 150 LPM)Flow Range, 1 in. connection size, FNPT Connection Type, -40 to 125 Degrees F Fluid Temp. Range , 50 PSI Max. Pressure, 44.0 SSU Max. Viscosity, Aluminum Housing, Aluminum fitting, Aluminum Chamber Material, Buna N seal Material, 999.9 Maximum Batch Total, Mechanical Display, Postitive Displacement Oval Gear, Accuracy +/– 0.25% of reading
Product Features:
- Extreme Accuracy, within +/- 1/2% across a flow range from 2 - 40 GPM (8 - 150 L/min)
- Oval Gear Technology - usually found in meters costing 10x more
- Magnetic drive eliminates driveshaft leaks
- Rotatable register for desired flow direction
- Batch total and cumulative total display
